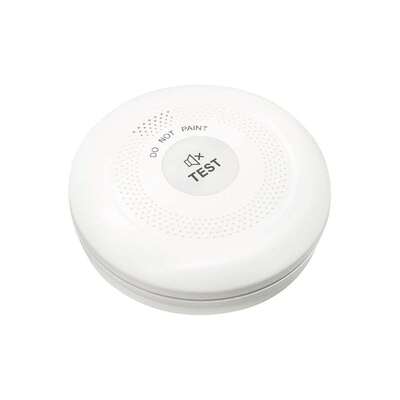

EN14604 Approved Fire Alarm Smoke Detector 3V Fire Safety Smoke Alarm OEM
| Place of Origin | China |
|---|---|
| Brand Name | Symank |
| Certification | SGS/UKCA/CE/ROHS |
| Model Number | JKD-517 |
| Certificates | Smoke alarm EN14604(CPR) Ce...ti.pdf |
| Minimum Order Quantity | 100pcs |
| Price | Negotiable |
| Packaging Details | Color box,size:110×55×110mm,60pcs in one carton,carton size:61x30x28cm |
| Delivery Time | 5 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 50K/Month |
Product Details
| Name | Fire Alarm Smoke Detector | Usage | Fire Smoke Detection And Alarm |
|---|---|---|---|
| Operating Voltage | 3V DC | Detection Type | Photoelectric |
| Battery Life | Up To 3 Years | Operating Temperature Range | -10°C To 50°C |
| Color | White | Weight | Around 180 Grams |
| Sensor Type | Photoelectric Sensor | Test Button | Yes |
| Material | ABS Fireproof | Environmental Temperature | -10℃ ~ +50℃ |
| Alarm Sound Level | 85 DB At 10 Feet | Dimensions | Approximately 120mm Diameter |
| Highlight | EN14604 Approved Fire Alarm Smoke Detector,Fire Alarm Smoke Detector 3V,Fire Safety Smoke Alarm OEM |
||
Product Description
Photoelectric Smoke Alarm for Residential Fire Detection
Product Overview
The JKD-517 is a standalone photoelectric smoke alarm developed for residential fire detection. It uses an optical sensing chamber to detect smoke particles generated during the early stages of many household fires, providing an audible warning when smoke reaches the specified alarm threshold.
Powered by two replaceable 1.5V AA batteries, the detector operates independently without requiring mains power, wireless communication or a mobile application. It is suitable for new residential installations, renovation projects and replacement programs where a standalone smoke alarm is required.
Manufactured according to EN14604:2005/AC:2008, the JKD-517 is available for OEM manufacturing, wholesale distribution and private-label cooperation for international customers. EN 14604 is the principal European standard for standalone residential smoke alarms.
Why Choose a Photoelectric Smoke Alarm?
Photoelectric smoke alarms are widely used in residential buildings because they respond to visible smoke particles commonly produced during smouldering fires.
The JKD-517 uses a photoelectric reflection sensor with a specified smoke sensitivity of 0.25dB/m, helping provide reliable smoke detection in accordance with its product specification.
For distributors and importers, choosing a photoelectric smoke alarm also aligns with the product category commonly specified for residential fire safety products in Europe.
Product Features
Optical Smoke Detection
The detector uses a photoelectric sensing chamber designed to detect smoke particles without using ionization technology.
Replaceable AA Batteries
Powered by 2 × 1.5V AA batteries, the detector remains operational even during a power outage and allows batteries to be replaced during the product's service life.
EN14604 Manufacturing Standard
The JKD-517 is manufactured according to EN14604:2005/AC:2008, making it suitable for residential smoke alarm projects requiring this standard.
Audible Warning
When smoke reaches the specified threshold, the detector activates an alarm of at least 85dB at 3 metres.
Low Standby Current
The standby current is specified at less than 50μA, while the alarm current remains below 70μA, supporting efficient battery operation.
Typical Applications
The JKD-517 is suitable for:
- Houses
- Apartments
- Bedrooms
- Living rooms
- Hallways
- Hotels
- Student accommodation
- Residential property developments
- Rental properties
The detector is designed for ceiling or wall installation, with a recommended coverage area of up to 40m² per room, subject to local installation requirements.
OEM & Private Label Services
The JKD-517 is available for OEM manufacturing and private-label cooperation.
Customization options include:
- Product logo printing
- Private-label packaging
- User manual customization
- Barcode labels
- Carton printing
- Multilingual documentation
All customized artwork is reviewed before production to ensure consistency with the approved technical documentation.
Certification & Documentation
The JKD-517 is manufactured according to EN14604:2005/AC:2008.
Supporting documentation available upon request includes:
- EN14604 documentation
- SGS documentation
- UKCA documentation
- RoHS declaration
- Product specification sheet
- User manual
- Packaging information
Customers should verify that all documentation corresponds to the exact product model and destination market before placing production orders.
Smoke alarm EN14604(CPR) Certi.pdf
Technical Specifications
| Item | Specification |
|---|---|
| Model | JKD-517 |
| Product Type | Standalone Photoelectric Smoke Alarm |
| Standard | EN14604:2005/AC:2008 |
| Sensor | Photoelectric Reflection |
| Power Supply | 2 × 1.5V AA Batteries |
| Smoke Sensitivity | 0.25dB/m |
| Alarm Volume | ≥85dB @ 3m |
| Silence Function | Approx. 10 Minutes |
| Product Life | 10 Years After Manufacture |
| Standby Current | ＜50μA |
| Alarm Current | ＜70μA |
| Operating Temperature | -10°C to +50°C |
| Humidity | ＜95% RH (Non-condensing) |
| Installation | Ceiling / Wall |
| Coverage Area | Up to 40m² |
| Dimensions | Φ120 × 39mm |
| Weight | 180 ±10g |
Frequently Asked Questions
Why choose a photoelectric smoke alarm?
Photoelectric smoke alarms are designed to detect visible smoke particles commonly produced during many residential fires and are widely used in household fire protection.
Is the JKD-517 connected to Wi-Fi?
No. This is a standalone smoke alarm and does not require Wi-Fi, Zigbee or an internet connection.
Can it be supplied under our own brand?
Yes. OEM branding, customized packaging and multilingual documentation are available.
Can samples be supplied?
Yes. Samples can be provided for evaluation before confirming mass production.
Which customers is this model intended for?
The JKD-517 is suitable for distributors, wholesalers, retailers, importers and fire safety brands looking for a standalone EN14604 smoke alarm.
