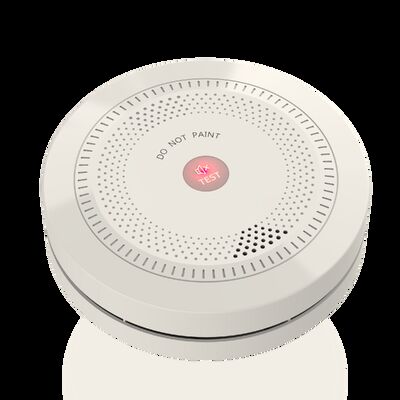

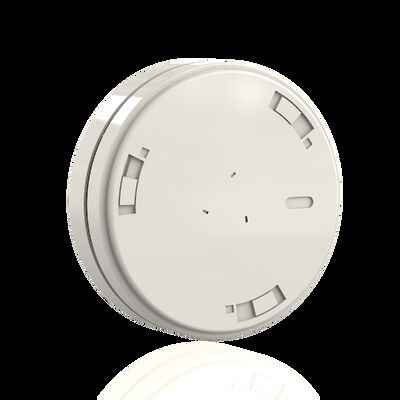

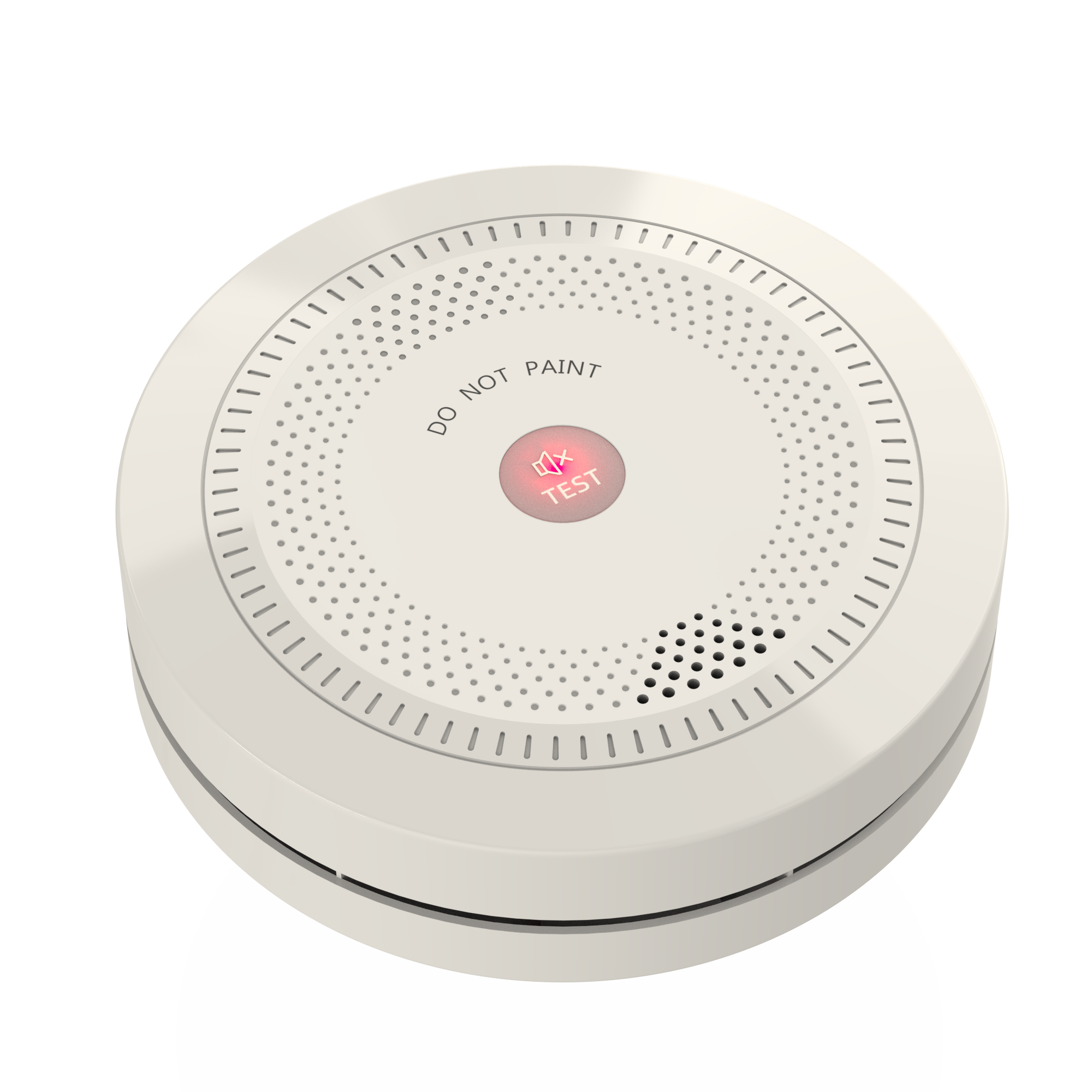

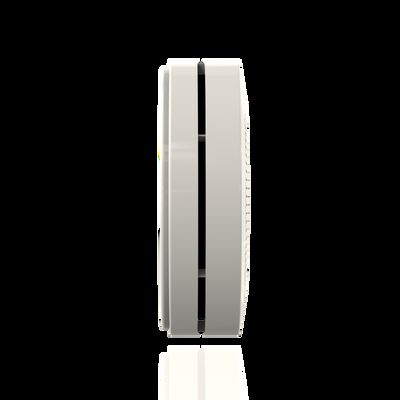

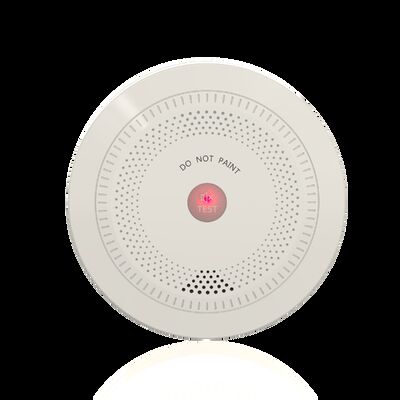

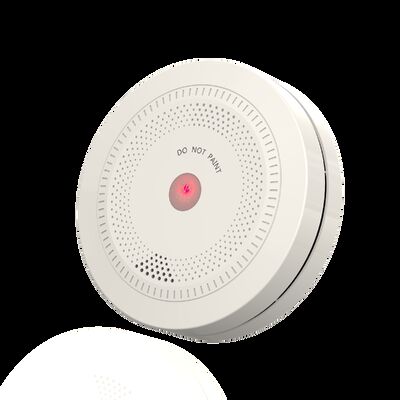

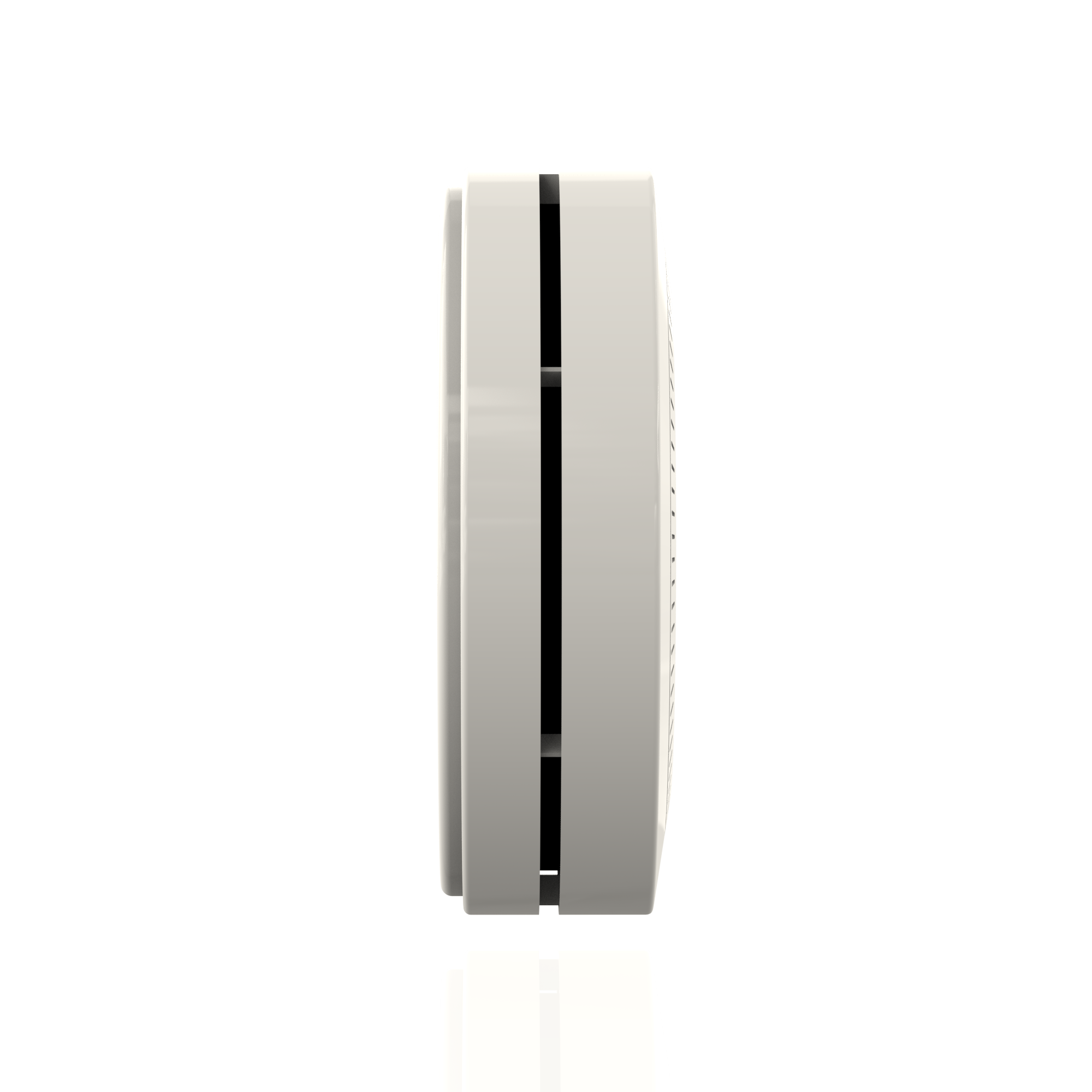

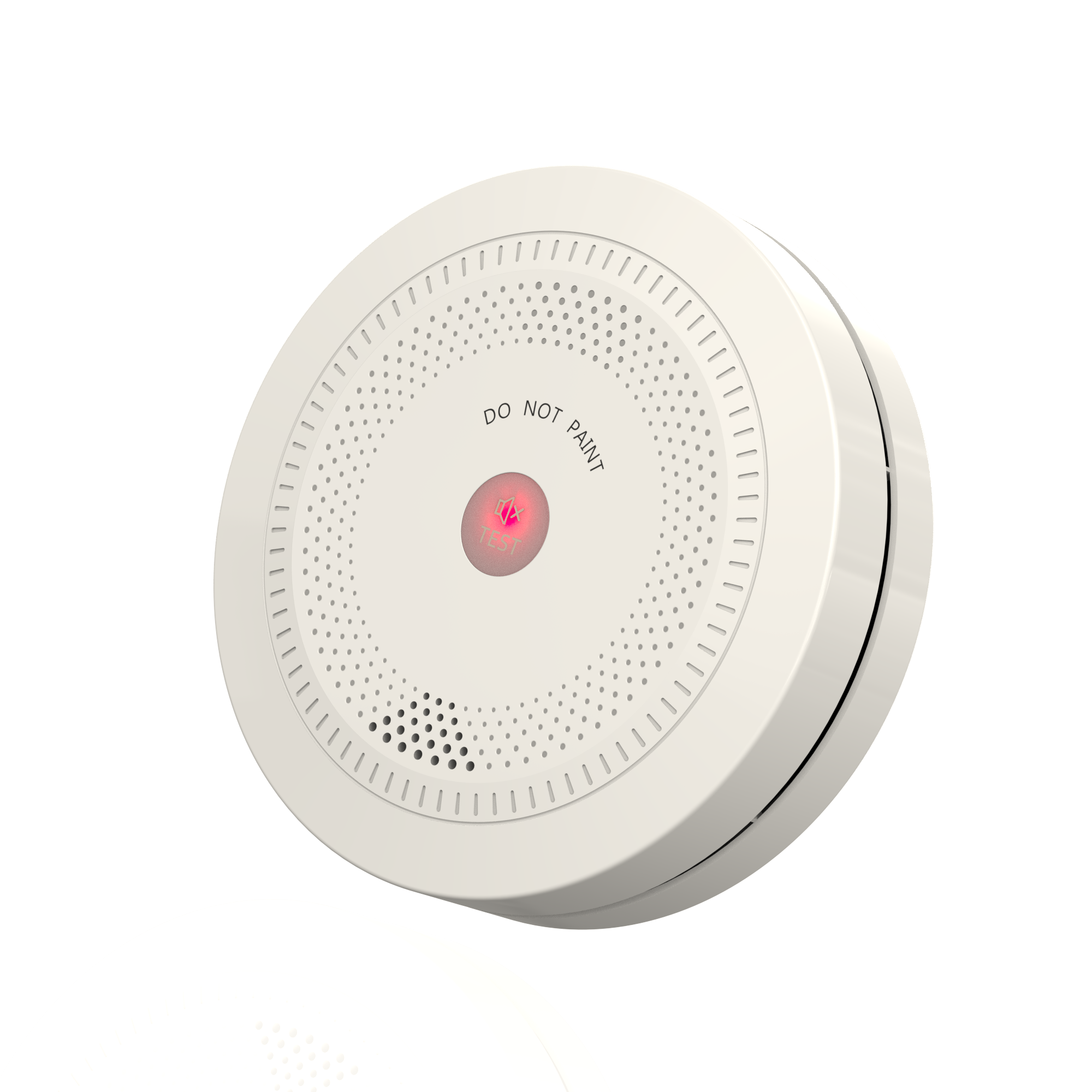

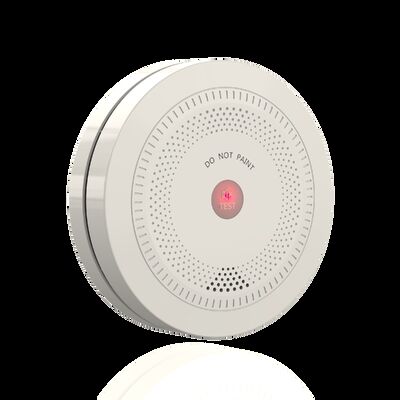

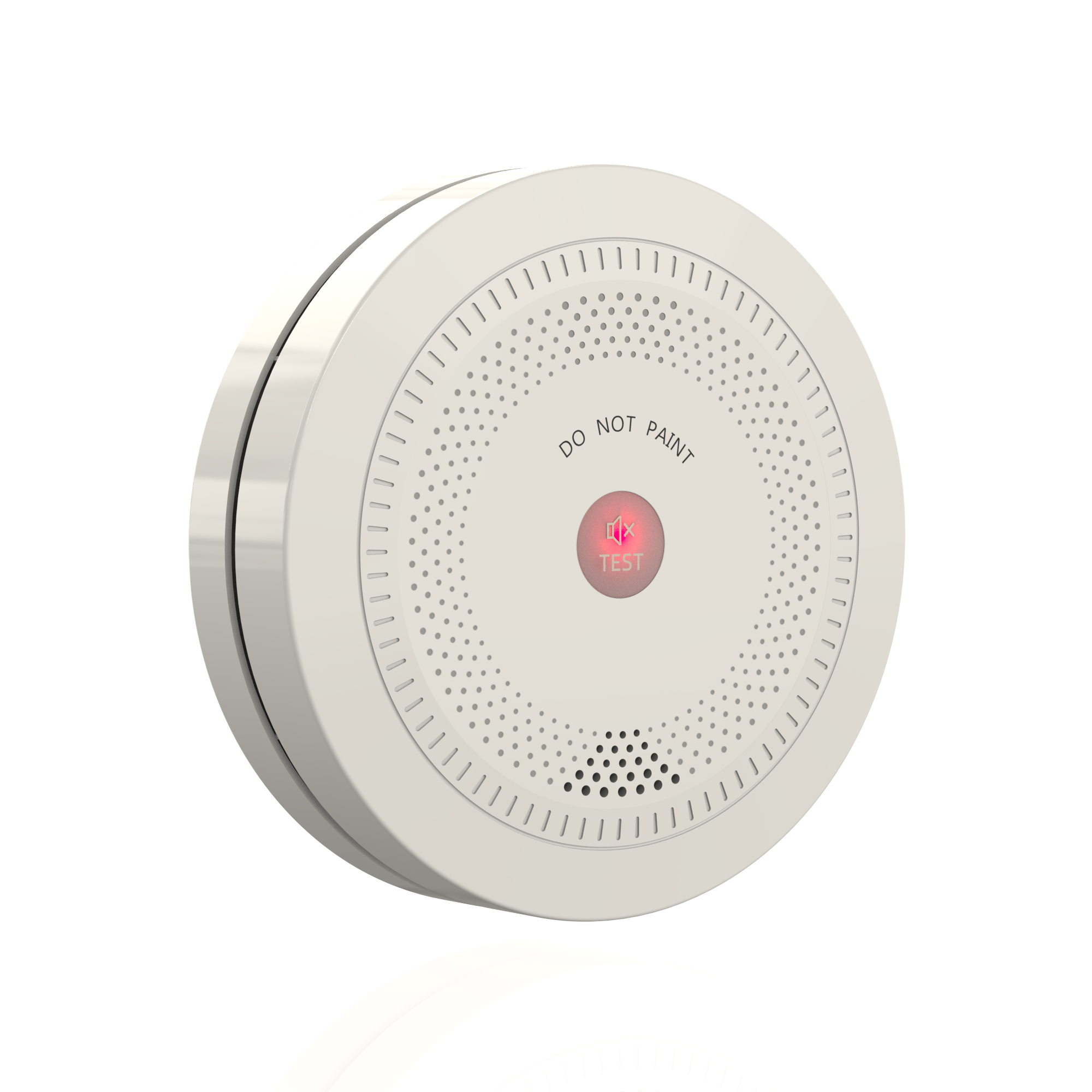

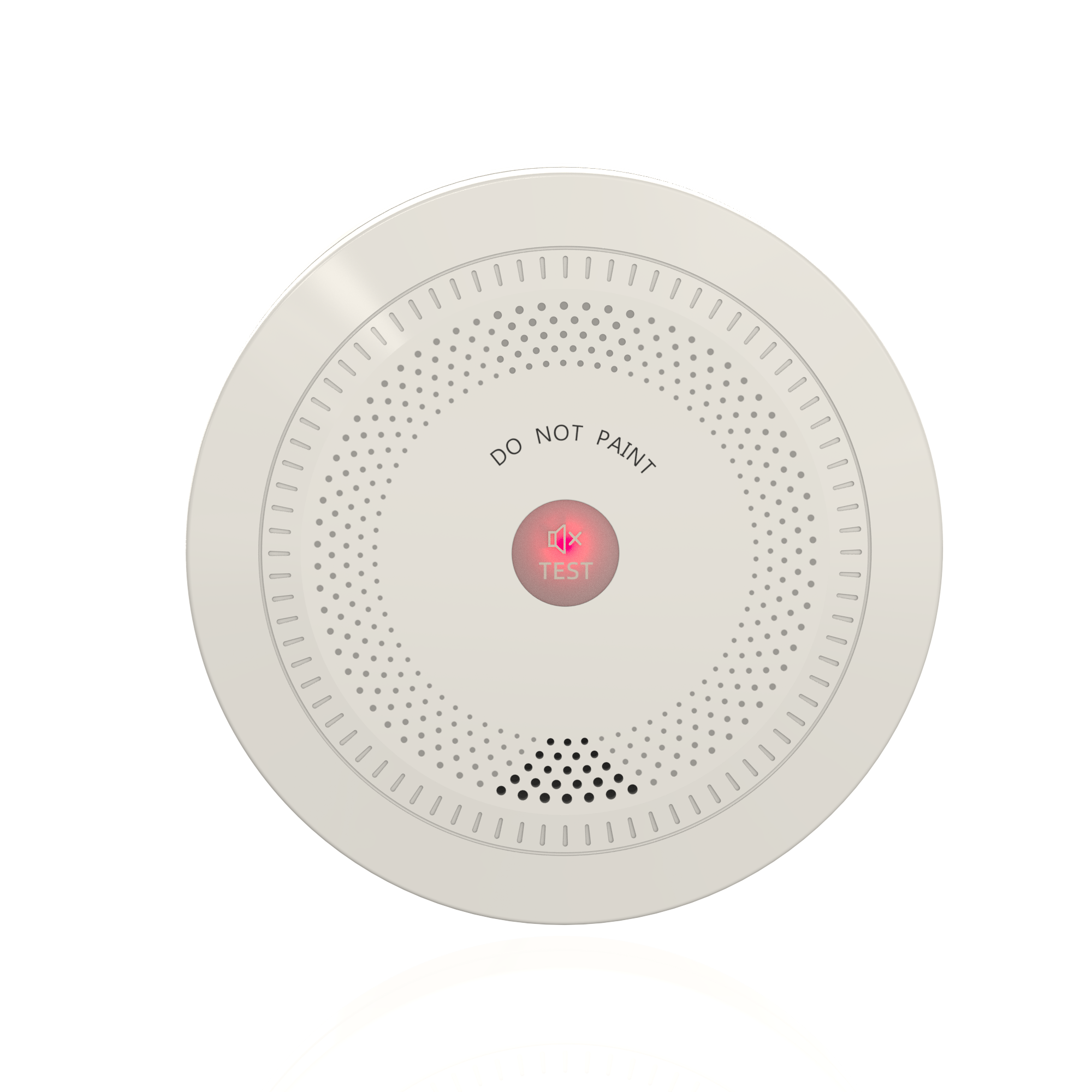

Wireless Fire Alarm Smoke Detector
| Place of Origin | China |
|---|---|
| Brand Name | Symank |
| Certification | CE/ROHS/SGS |
| Model Number | JKD-624 |
| Minimum Order Quantity | 1000pcs |
| Price | Negotiable |
| Packaging Details | color box |
| Delivery Time | 10 days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 50K/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fire Alarm Smoke Detector | Usage | Detect Smoke,smoke Alarm,Office Building,Fire Protection,warehouse Etc |
|---|---|---|---|
| Material | ABS Plastic,Double Sided Glass | Warranty | 2 Year |
| Operating Voltage | DC3V,24VDC No-polarity,2-3A Battery | Alarm Volume | 85dB/(10 Inch),>85dB(A) At 3 Meters,≥85dB (at 3m Distance) |
| Sensor | Optical Speed,Photoelectric/optical | Alarm Current | ≥60mA,69mA |
| Type | Wireless Smoke Detector | Dimension | 105*38mm |
| Weight | 180g With Battery | Alarm Sound Level | ≥85dB (3m) |
| Highlight | 10-Year Lifespan Smoke Detector,Photoelectric Sensor Fire Alarm,85dB Alarm Photoelectric Smoke Alarm |
||
Product Description
10-Year Lifespan Photoelectric Smoke Detector Fire Alarm with 85dB Alarm and EN14604 Certification
Professional smoke detector with 30-month warranty and 10-year lifespan for reliable fire protection.
Key Features
- 10-year operational lifespan - no frequent battery changes required
- Photoelectric sensor technology for early smoke detection
- Sound and light alarm system with >80dB audible alert
- Dust-proof, moth-proof construction with anti-white light interference
- IP30 protection rating for durable performance
Applications
Ideal for apartments, condominiums, townhouses, hospitals, day care facilities, health care facilities, boarding houses, group homes, and dormitories where primary fire detection systems exist in common areas.
Technical Specifications
| Working Voltage | 2 × 1.5V AA Battery |
| Static Current | <3μA |
| Alarm Current | <100mA |
| Alarm Indication | Red LED Flash |
| Detection Area | 80m² at 6-12m height; 60m² at <6m height |
| Operating Environment | Temperature: -10°C to 55°C; Humidity: <95% without crystallization |
| Alarm Type | Sound and Light |
| Alarm Volume | >80dB at 3 meters |
| Sensor Type | Photoelectric |
| Weight | Approximately 180g |
| Dimensions | 120 × 120 × 40mm |
| Protection Grade | IP30 |
Certifications
EN14604:2015+AC:2008
EN62368-1:2014+A11:2017
IEC62321-1:2013
EN55014-1:2017
Installation & Maintenance
- Avoid installation in areas with stagnating smoke, heavy dust, water mist, oil mist, high humidity (>95%), or high wind speed (>5m/s)
- Insert batteries into cabinet, ensuring correct anode and cathode placement
- Install at center of detection area ceiling for optimal coverage

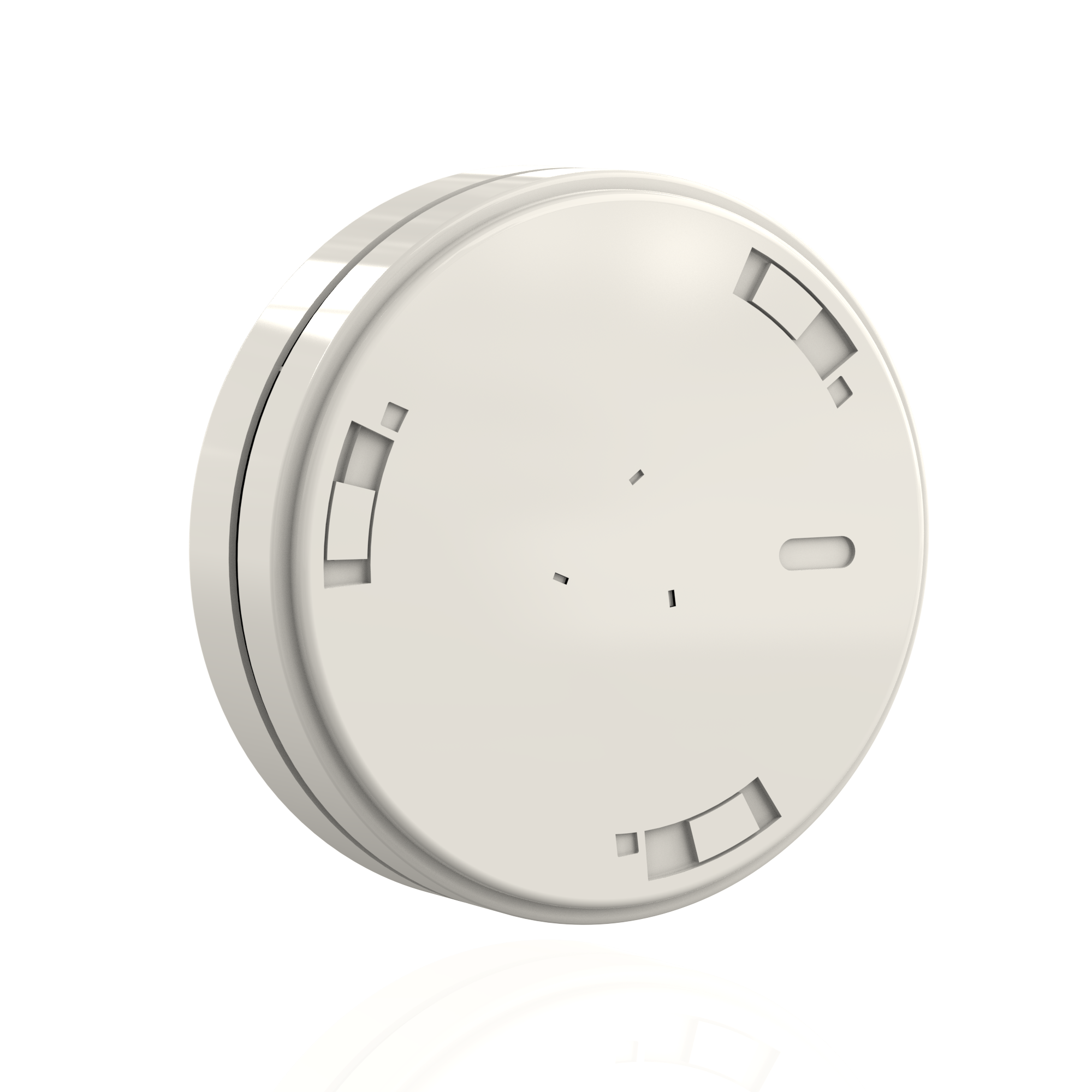

- Secure detector base to chosen position and twist detector into place for tight fastening
Coverage area: 80m² at 6-12m installation height; 60m² at installation height <6m
