Smoke and Carbon Monoxide Alarm for Rooms Up to 40 Square Meters

Technical standards and sensor technology are important when selecting a home safety product, but distributors also need to answer a much more practical customer question:

Where can this alarm be installed and how much room area can it cover?

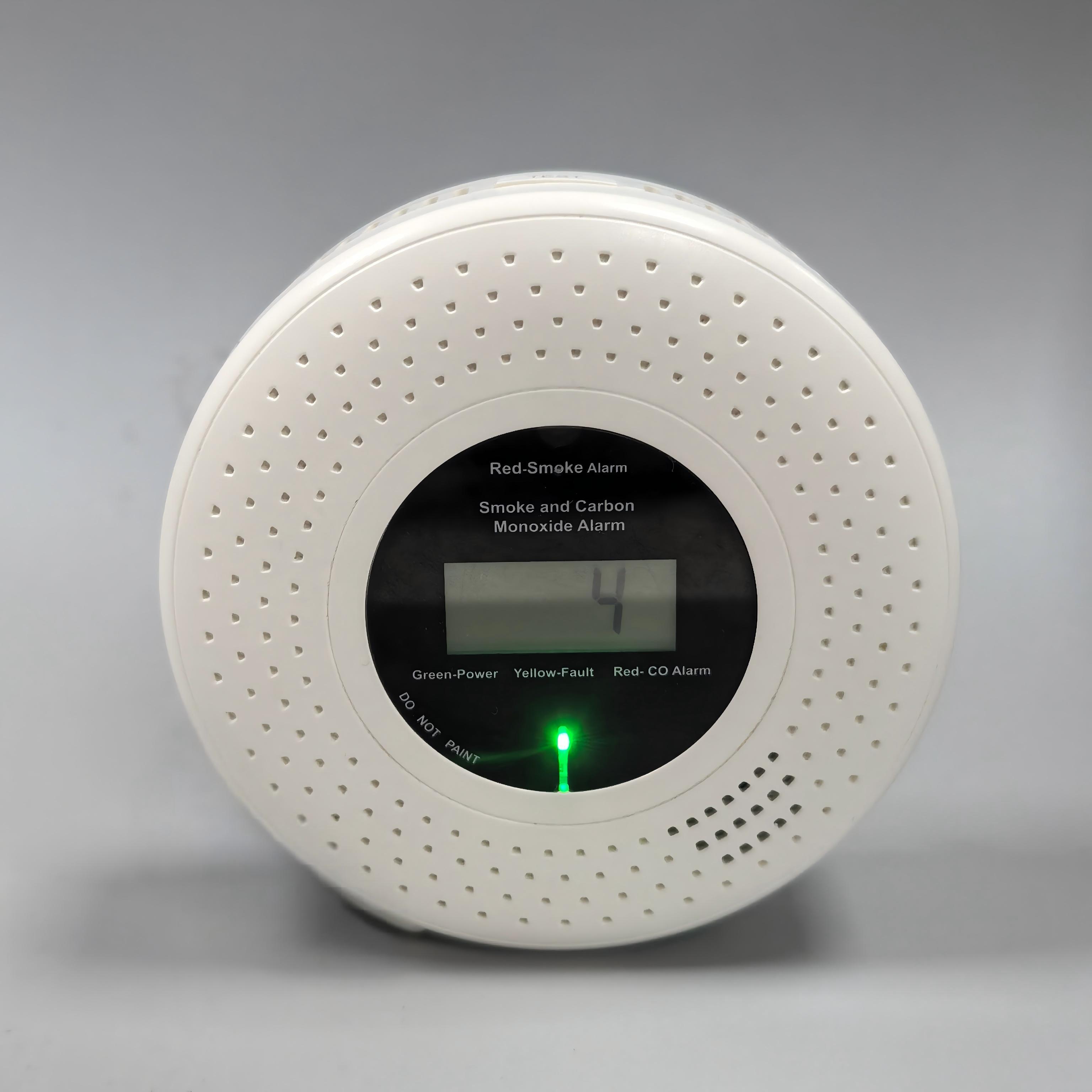

The JKD-513COM smoke and carbon monoxide alarm is designed for residential applications with a specified detection range of:

It can be installed on either a:

Ceiling

or:

Wall

according to the applicable installation instructions.

This makes JKD-513COM particularly suitable for distributors looking for a smoke and CO alarm for apartments, houses, bedrooms, hallways and other residential rooms.

Unlike the previous JKD-513COM pages focused on battery architecture, dual-sensor technology or certification, the purchasing reason here is straightforward:

A compact combination smoke and CO alarm designed for practical residential room installation.

Many residential safety ranges contain separate products for different hazards.

A standalone smoke alarm monitors smoke.

A standalone carbon monoxide alarm monitors CO.

JKD-513COM combines these functions into one housing using two dedicated sensor technologies:

For homeowners who require both functions in an appropriate location, this can simplify product selection and installation.

For distributors, it also creates a useful combination smoke and CO alarm category between standalone products and connected smart home systems.

JKD-513COM has a specified detection range of:

This is a useful specification for B2B customers because it helps them understand the intended residential positioning of the product.

Potential applications can include suitable locations in:

• Apartments
• Houses
• Residential bedrooms
• Hallways
• Living areas
• Rental properties
• Holiday homes
• Residential buildings

Actual installation location and quantity should always follow the supplied instructions and applicable local requirements.

For SEO and online retail, this also allows the product to answer more specific customer searches such as smoke and carbon monoxide alarm for home, CO smoke alarm for apartment, and residential smoke and CO sensor for room protection.

Different residential environments may require different installation arrangements.

JKD-513COM supports:

and

This provides installation flexibility while maintaining the same combined smoke and carbon monoxide sensing platform.

The housing dimensions are approximately:

Φ105 x 39mm

with a net weight of:

180 plus or minus 10g.

Its compact circular format allows the home smoke and CO alarm to integrate naturally into residential interiors without requiring two separate housings for the two sensing functions.

For smoke monitoring, JKD-513COM uses:

with a specified smoke alarm sensitivity of:

0.25dB/m

The smoke function follows:

EN14604:2005/AC:2008

The product also includes an approximately:

10-minute smoke alarm silence function.

For customers searching for a photoelectric smoke alarm for residential use, JKD-513COM provides this technology as part of a combined CO and smoke solution.

The carbon monoxide function uses a dedicated:

and conforms to:

EN50291-1:2018

The specified CO alarm response is:

These defined response characteristics provide distributors with measurable specifications for the carbon monoxide alarm function.

The combination of a photoelectric smoke sensor and electrochemical CO sensor means the two residential hazards are monitored using separate sensing technologies within one unit.

JKD-513COM is designed with a:

This long product lifecycle makes it suitable for residential safety portfolios where buyers are looking for more than a basic short-life alarm.

The product is powered by:

3 x 1.5V AA alkaline batteries

providing a familiar replaceable battery architecture.

The specified average standby current is:

Less than 50μA

while average alarm current is:

Less than 70mA.

This creates a 10 year smoke and CO alarm with replaceable AA battery power, offering an alternative to sealed-lithium products.

When an applicable alarm condition occurs, JKD-513COM provides both visual and audible indication.

The specified alarm sound pressure is:

The apparatus is classified as:

Type B to provide a visual and audible alarm only.

For residential users, the combination of visible indication and audible warning provides a straightforward way of communicating an alarm condition.

JKD-513COM is specified for operation between:

-10°C and +50°C

with relative humidity:

Below 95 percent RH non-condensing.

The specified storage and transportation conditions are also:

-10°C to +50°C

and:

Below 95 percent RH non-condensing.

These environmental specifications provide importers and wholesalers with important information for technical documentation, storage and product evaluation.

Although installation is the core theme of this page, JKD-513COM retains the complete certification structure required for its product positioning.

It is supported by:

SGS Certification

EN14604:2005/AC:2008

EN50291-1:2018

RoHS

EMC

UKCA

For European distributors, this allows the product to combine practical residential installation with documented smoke and carbon monoxide performance.

The selling proposition can be communicated without vague marketing language:

• Smoke and CO sensing in one unit
• Maximum 40m2 room detection range
• Ceiling or wall installation
• 10-year product life
• Photoelectric smoke sensor
• Electrochemical CO sensor
• EN14604 and EN50291

This makes JKD-513COM suitable for home safety brands, fire safety wholesalers, electrical distributors, DIY retailers, property safety suppliers and private-label projects.

OEM and ODM services can support customized logos, labels, retail packaging, multilingual manuals and cartons.

JKD-513COM provides documentation covering both sensing functions and additional compliance requirements:

SGS Certification

EN14604:2005/AC:2008 Smoke Alarm Standard

EN50291-1:2018 Carbon Monoxide Alarm Standard

RoHS

EMC

UKCA

Technical datasheets, product specifications, user manuals and relevant certification documents can be provided for B2B evaluation.

CE EN50291 Report.pdf

CE EN14604(CPR) Report.pdf

The specified detection range is maximum 40m2 within a room.

Yes. JKD-513COM supports ceiling or wall installation according to the product instructions.

Yes. It combines a photoelectric smoke sensor and electrochemical CO sensor in one housing.

Yes. The smoke function follows EN14604:2005/AC:2008.

Yes. The carbon monoxide function conforms to EN50291-1:2018.

The specified product life is 10 years after manufacture.

JKD-513COM uses 3 x 1.5V AA alkaline batteries.

The specified sound pressure is at least 85dB at 3 meters.

Yes. OEM, ODM and private-label projects are supported.
