Wall Mounted / Ceiling Mounted Fire Safety Alarm EN Standard Zigbee Smoke Detectors
| Place of Origin | China |
|---|---|
| Brand Name | 1000pcs |
| Certification | CE/ROHS/UKCA/SGS/RED |
| Model Number | JKD-513COM-Z |
| Minimum Order Quantity | 1000pcs |
| Price | Negotiable |
| Packaging Details | Carton/Color Box |
| Delivery Time | 10 Days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 50K/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Installationtype | Wall-mounted Or Ceiling-mounted | Alerttype | Push Notification And Alarm |
|---|---|---|---|
| Dimensions | Approx. Dia 104 Mm | Operatingtemperaturerange | -10°C To 50°C |
| Communicationprotocol | Zigbee | Weight | Around 200 Grams |
| Productname | Zigbee Detector | Batterytype | CR123A Or AA (model Dependent) |
| Compatibility | Works With Zigbee Hubs And Gateways | Operatingvoltage | 3V |
| Detectiontype | Smoke/CO | Batterylife | Up To 2 Years |
| Powersupply | Battery-powered | ||
| Highlight | Wall Mounted Fire Safety Alarm,Ceiling Mounted Fire Safety Alarm,EN Standard Zigbee Smoke Detectors |
||
Product Description

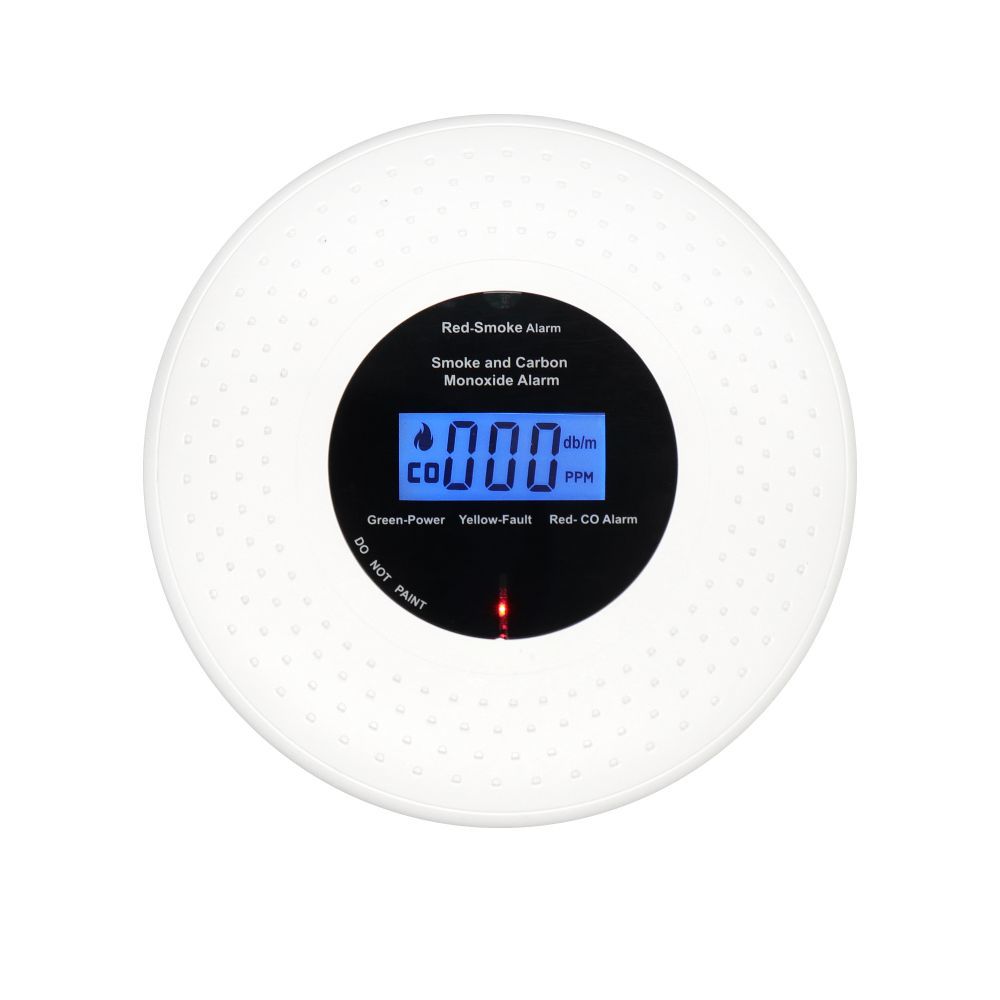

Smart Fire Safety Device with 10-Year Battery Life Zigbee 3.0 Protocol Smoke Carbon Monoxide Detector EN Standards Compliant
Product Overview
This smart dual-sensor safety device combines photoelectric smoke detection and electrochemical carbon monoxide sensing for comprehensive protection in residential and commercial environments. Engineered for reliability, it detects early smoke at 0.25dB/m density and hazardous CO levels with precision. The detector seamlessly integrates with TUYA-enabled applications and Zigbee home gateways, providing real-time alerts and smart automation capabilities.
Certifications & Quality Assurance
Certified to EN 14604:2005/AC:2008 and EN 50291-1:2018 standards, with independent testing by SGS. Built for long-term reliability with a 10-year operational lifespan and compact, easy-to-install design suitable for hotels, offices, apartments, and IoT smart-home deployments.
Key Features & Advantages
- Dual-sensor technology: Photoelectric smoke + Electrochemical CO detection
- High sensitivity: Smoke detection at 0.25dB/m density
- CO alarm response: 50ppm (60-90 min), 100ppm (10-40 min), 300ppm (3 min)
- Zigbee 3.0 wireless communication with TUYA compatibility
- 10-minute alarm silence function for convenience
- Loud ≥85dB audible alarm audible at 3 meters distance
- Wide operating temperature range: -10°C to +50°C
- 10-year sealed lithium battery power supply
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 10-year sealed lithium battery |
| Smoke Detection | Photoelectric, 0.25dB/m |
| CO Detection | Electrochemical |
| CO Alarm Response | 50ppm (60-90 min), 100ppm (10-40 min), 300ppm (3 min) |
| Communication | Zigbee 3.0, TUYA-compatible |
| Operating Temperature | -10°C to +50°C |
| Sound Level | ≥85dB at 3m |
| Installation | Ceiling or wall mount |
Manufacturing Capabilities
We provide comprehensive OEM and ODM support including PCB customization, module integration, firmware development, and private-label production. Our automated SMT production lines and SGS-certified quality assurance ensure each device meets international standards. We offer rapid sampling and bulk delivery options for B2B clients seeking reliable, ready-to-market smart fire-safety solutions.
