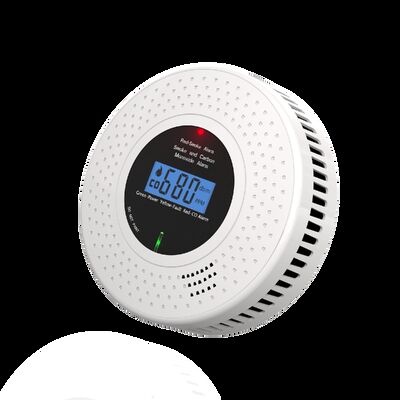

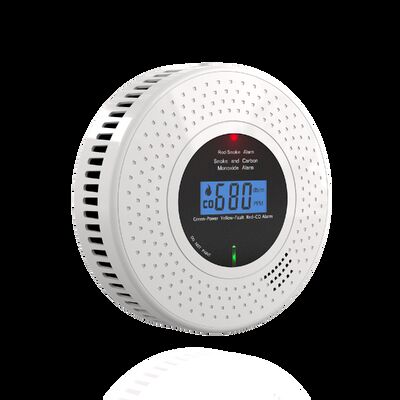

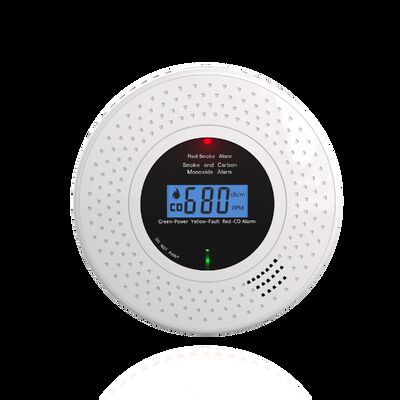

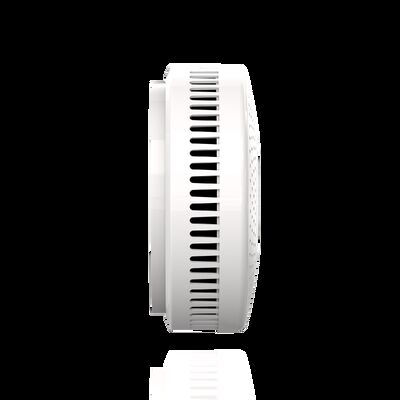

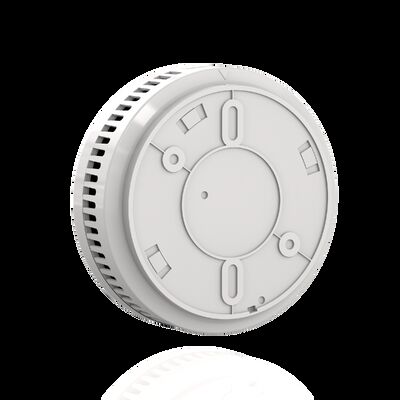

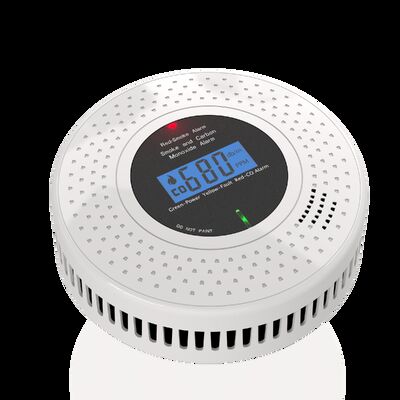

Photoelectric / Electrochemical Smoke Carbon Monoxide Detectors 10 Year Lithium Battery Smoke Detectors
| Place of Origin | China |
|---|---|
| Brand Name | Symank |
| Certification | CE/ROHS/EN50291/EN14604 |
| Model Number | JKD-513COM |
| Minimum Order Quantity | 1000pcs |
| Price | Negotiable |
| Packaging Details | color box |
| Delivery Time | 10 days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 50k/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Smoke Carbon Monoxide Detectors | Sensor Technology | Photoelectric/Electrochemical |
|---|---|---|---|
| Alarm Sound Level | 85 Decibels | Size | Dia 105mm |
| Power Source | Battery-operated | Test Button | Yes, For Manual Testing |
| Weight | Approximately 180g | Detection Type | Smoke And Carbon Monoxide |
| Operating Temperature Range | 0°C To 40°C (32°F To 104°F) | Certifications | CE/SGS/EN50291/EN14604 |
| Display | Digital Display For CO Levels | End-Of-Life Warning | Yes, Alerts When Detector Needs Replacement |
| Battery Life | Up To 10 Years | ||
| Highlight | Photoelectric Smoke Carbon Monoxide Detectors,Electrochemical Smoke Carbon Monoxide Detectors,10 Year Lithium Battery Smoke Detectors |
||
Product Description
10-Year Battery Life Smoke and Carbon Monoxide Detector with Photoelectric/Electrochemical Sensor and 85 Decibel Alarm
Product Overview
Advanced 10-year lithium battery operated smoke and carbon monoxide alarm with dual detection capabilities and professional certification.
- Operates on 3PCS 1.5V AA batteries
- High reliability infrared sensor and electrochemical sensor technology
- Modern design and molding for contemporary interiors
- Dual-function CO and smoke detection in one unit
- EN50291 & EN14604 certified for safety compliance
- Alarm memory function for incident tracking
- High definition LCD display showing PPM concentration
CO + Smoke Alarm JKD-513COM Features
This reliable dual-detection alarm has proven market stability through extensive testing, offering comprehensive protection against both carbon monoxide and smoke hazards.
Customization Options
Available in CO+Smoke combo, CO-only, or Smoke-only configurations to meet specific safety requirements.
Technical Specifications
Smart microprocessor-controlled detection system featuring stable electrochemical carbon monoxide sensor with low current consumption and minimal sensitivity drift.
Application Areas
Ideal for residential and commercial spaces requiring protection from carbon monoxide gas leakage and fire hazards, ensuring personal safety.
User Instructions
- Initial Setup: Insert 3 pieces of 1.5V AA batteries. The buzzer will sound once ("di") and the detector begins preheating. The LCD displays a 2-minute countdown during startup.
- Testing Function: Press the "TEST" button to check functionality. LCD displays "CO 0ppm" and smoke "0.00db/m" with LED flickering and continuous alarm sound.
- Peak Record: Press "TEST" button to check alarm concentration. Long press "TEST" button for more than 10 seconds to clear records.
- Status Indicator: Normal standby mode shows green light flashing once every 35 seconds.
- Low Battery Warning: When battery capacity is low, red light flashes once every 10 seconds and LCD displays "Lb".
Alarm Specifications
Carbon Monoxide Detection (EN50291 Certified)
| Concentration Level | Alarm Response Time |
|---|---|
| 50ppm | Alarm within 60-90 minutes |
| 100ppm | Alarm within 10-40 minutes |
| 300ppm | Alarm within 3 minutes |
| Over 300ppm | Immediate alarm activation |
Emergency Response: When CO alarm activates (buzzer sounds "di" four times every 5 seconds with red light flashing), immediately turn off gas valves, open windows and doors for ventilation, and contact emergency services.
Smoke Detection (EN14604 Certified)
When smoke concentration exceeds 0.1%db/m, the alarm activates with rapid blue light flashing and continuous buzzer alarm.
