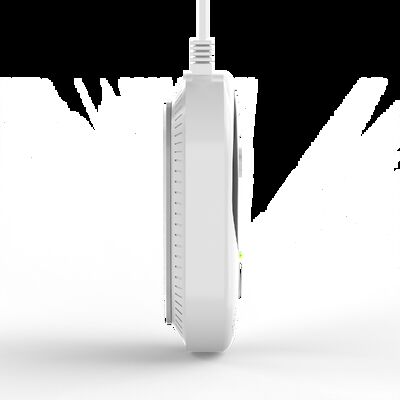

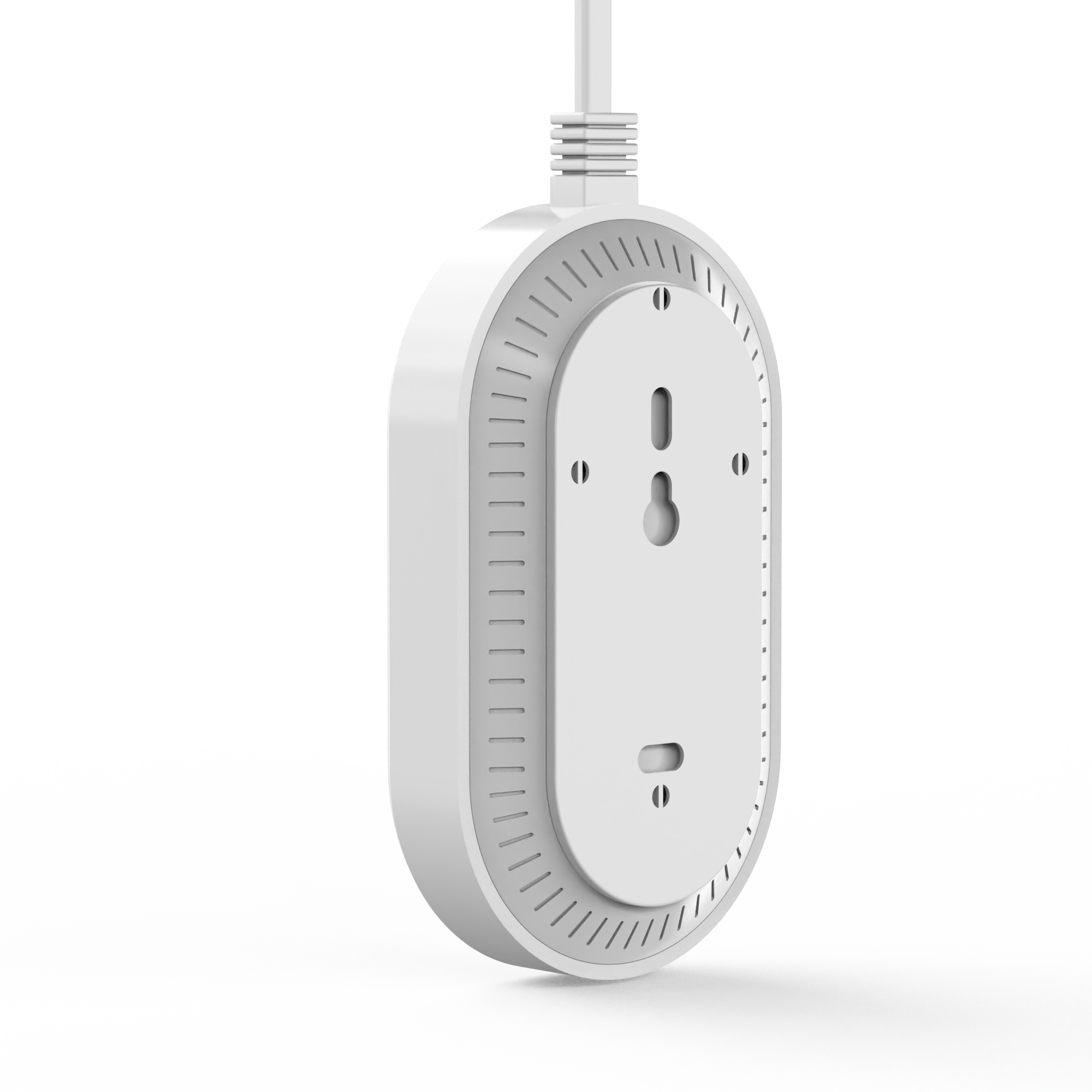

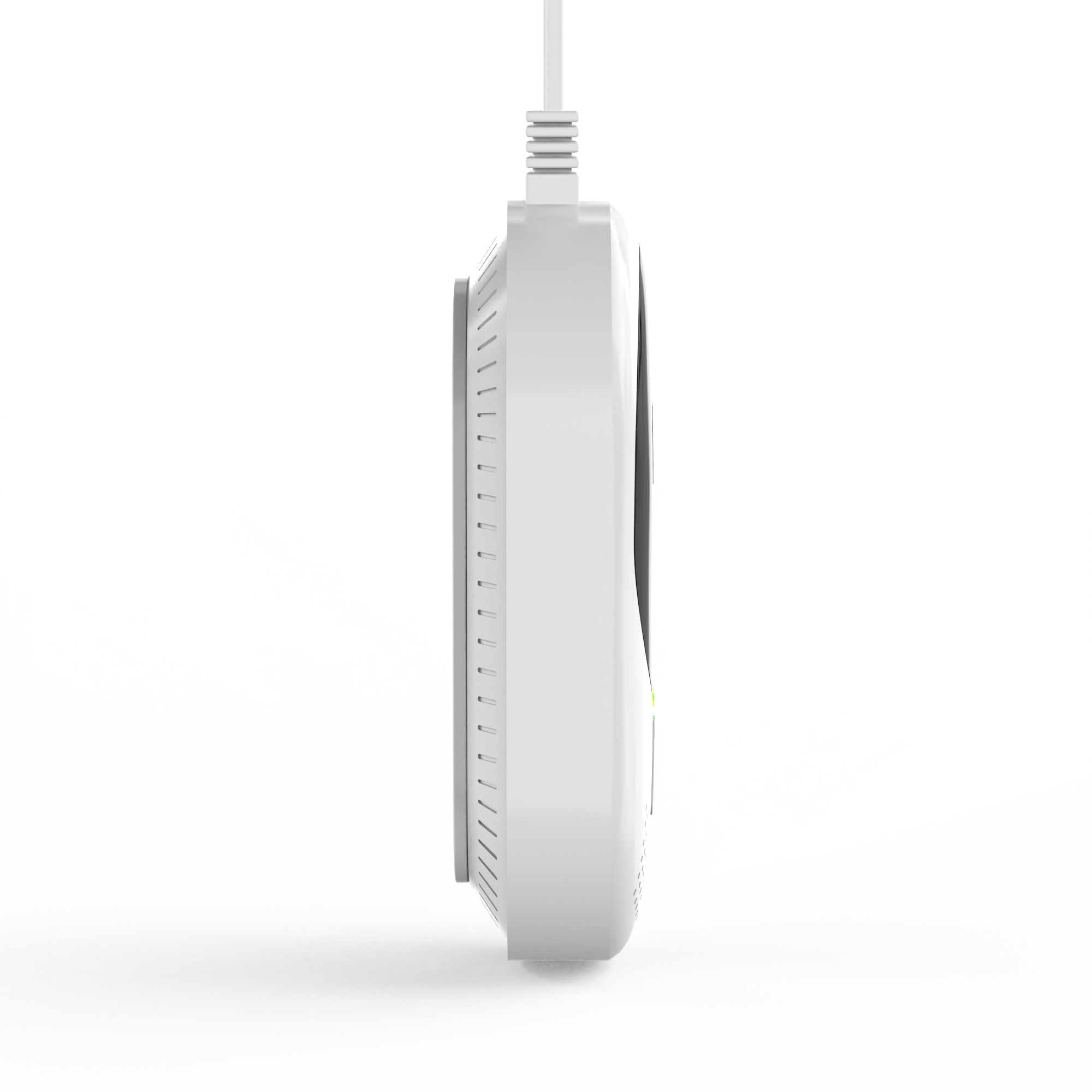

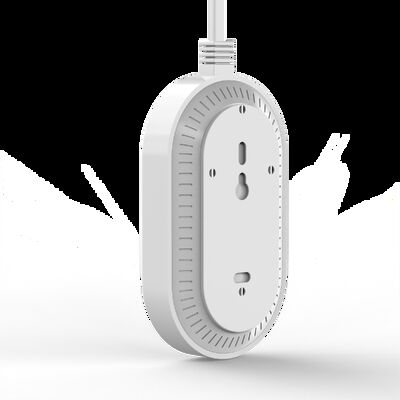

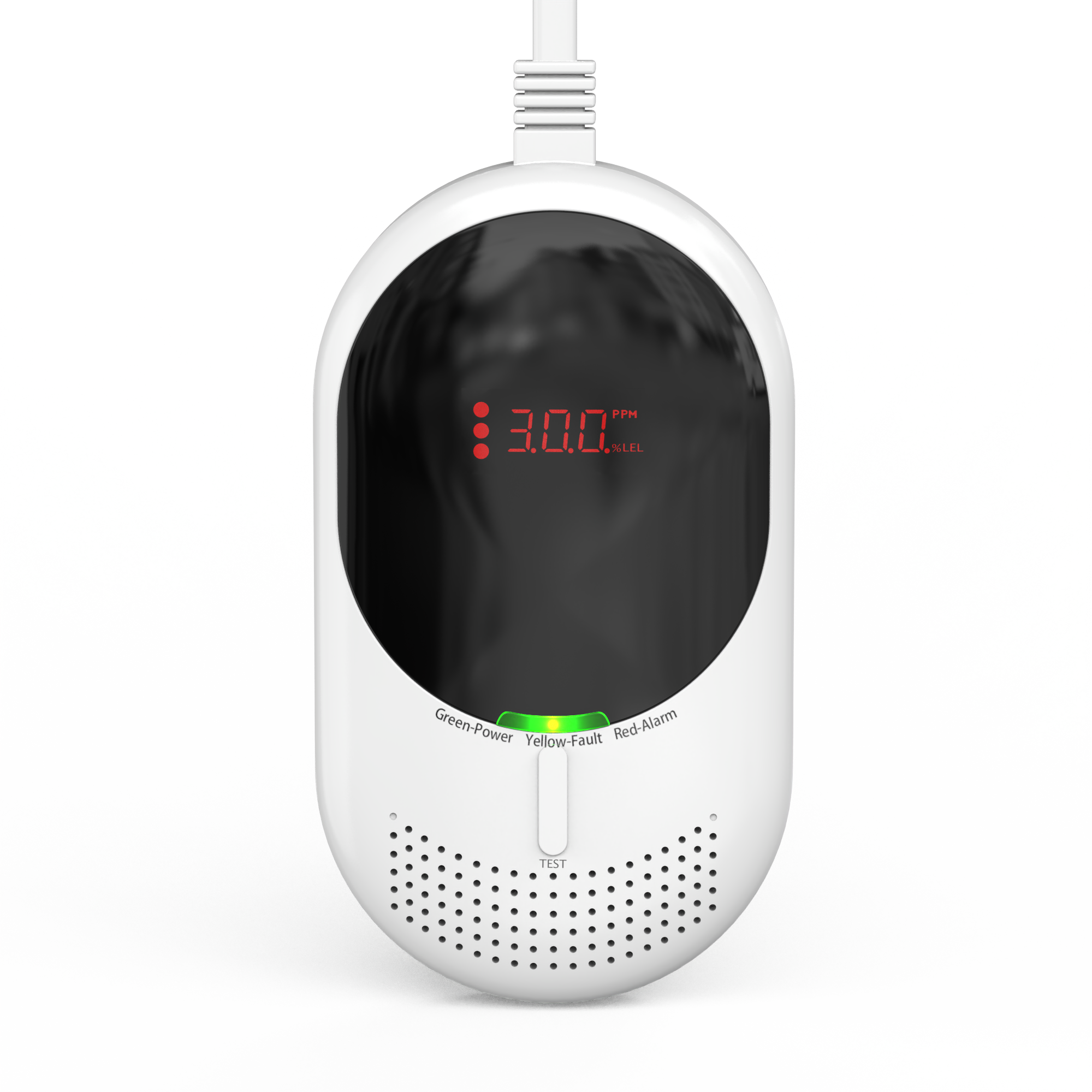

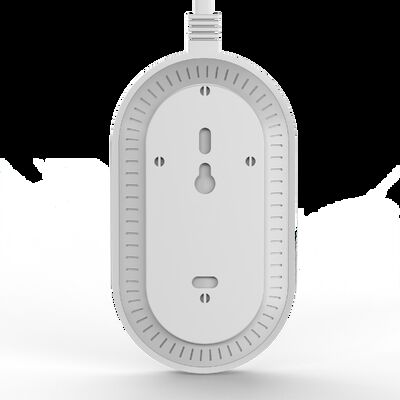

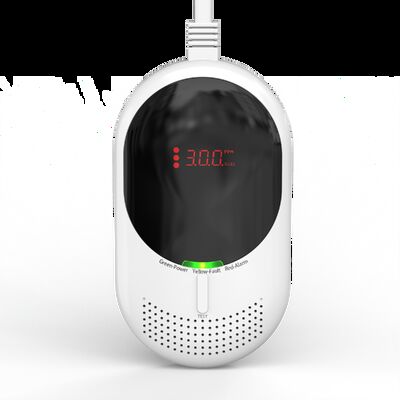

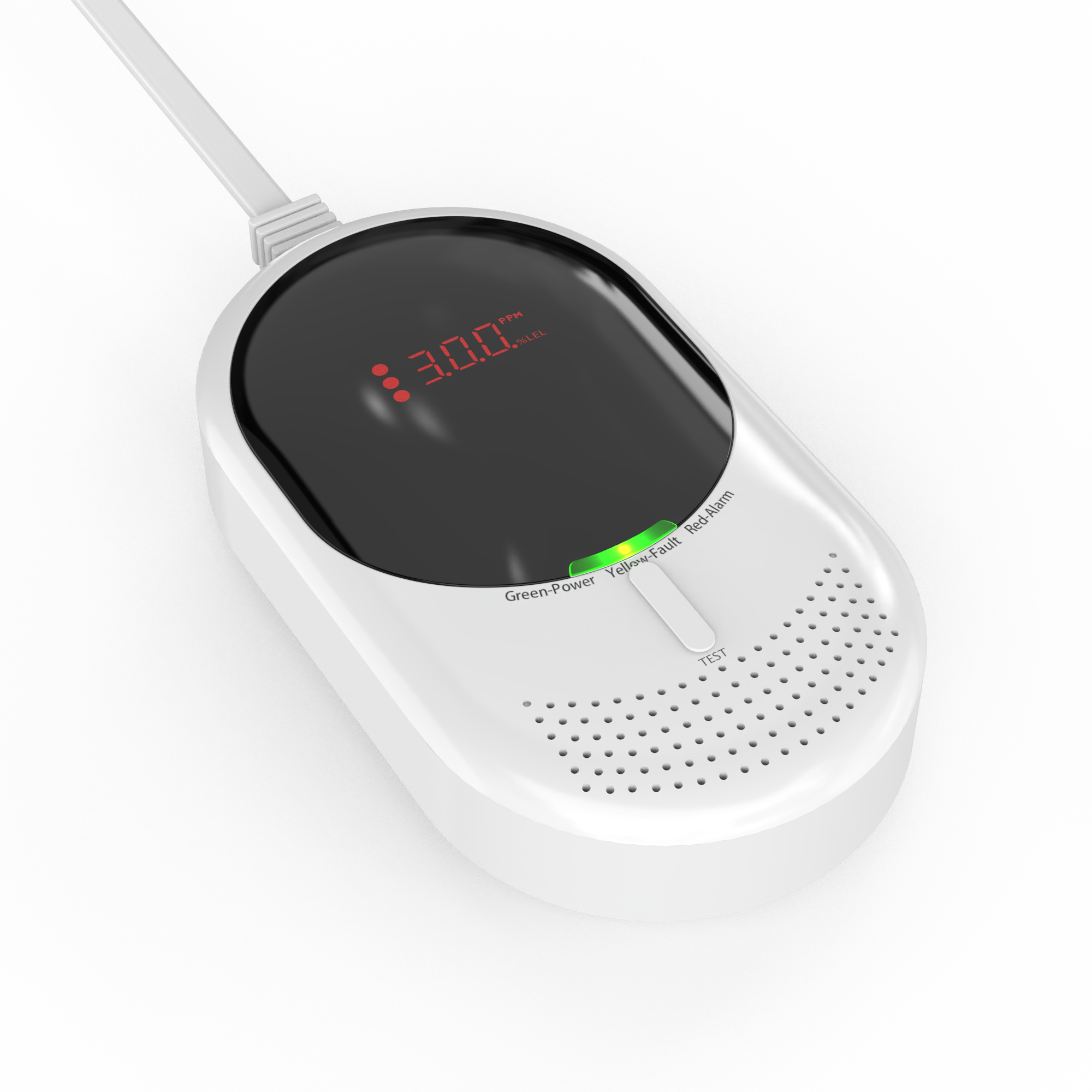

LCD Display Carbon Monoxide Gas Detectors
| Place of Origin | China |
|---|---|
| Brand Name | symank |
| Certification | CE/EN50291/EN5194/SGS |
| Model Number | JKD-815COM |
| Minimum Order Quantity | 1000pcs |
| Price | Negotiable |
| Packaging Details | Color Box |
| Delivery Time | 15 DAYS |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 50K/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alarm Sound Level | 85 DB At 3 Meters | Detection Types | Gas, Carbon Monoxide |
|---|---|---|---|
| Response Time | Within 30 Seconds | Test/Reset Button | Yes |
| Operating Temperature | -10°C To 50°C | Display | Digital LCD Display |
| Power Source | Battery / AC Adapter | Detection Range | 0-500 Ppm For CO, Varies For Gases |
| Sensor Type | Electrochemical / Semiconductor | Operating Humidity | 10% To 90% Non-condensing |
| Alarm Type | Audible Alarm, Visual Indicator | Installation Type | Wall-mounted / Portable |
| Highlight | LCD Display Carbon Monoxide Gas Detectors,Digital LCD Display Carbon Monoxide Detector,Dual Sensor Detection Combination Gas Alarm |
||
Product Description
Long Life Sensor Gas Detector with Digital LCD Display and Dual Sensor Detection for Carbon Monoxide and Combustible Gases
Combustible Gas + Carbon Monoxide Alarm JKD-815COM
Plug-in design with 90~240V power compatibilityHigh reliability semiconductor and electrochemical sensorsDetection ranges: CO (30~999×10⁻⁶), CH4 (0~20% LEL)Dual-function alarm for both gas typesCompatible with solenoid valvesAlarm memory functionHigh-definition LCD display showing PPM values
Product Overview
The JKD-815COM is an intelligent combustible gas and carbon monoxide detector featuring long-life sensors and microprocessor control. It provides real-time gas concentration display and activates a built-in siren when gas levels reach dangerous thresholds. The advanced semiconductor and electrochemical sensors ensure stable, reliable performance, protecting environments from combustible gases (including liquefied petroleum gas, natural gas methane) and carbon monoxide hazards in kitchens, bathrooms, and other spaces.
| Working Voltage | AC 90~240V plug-in |
|---|---|
| Standby Current | <200mA |
| Alarm Current | <300mA |
| Warm-up Time | 3 minutes |
| Pressure Range | 86kPa~106kPa |
| Detection Gases | Natural gas, liquefied petroleum gas, methane, propane, carbon monoxide |
| Alarm Thresholds | Gas alarm over 6% LEL, continuous alarm over 25% LEL CO alarm over 200×10⁻⁶ |
| Operating Environment | Temperature: -10°C~55°C Relative humidity: <95% without crystallization |
| Alarm Type | Sound and light alert |
| Alarm Volume | >80dB (at 3 meters directly in front) |
| Sensor Technology | Semiconductor and electrochemical sensors |
| Weight | Approximately 250g |
| Dimensions | 152 × 82 × 39mm |
| Protection Rating | IP30 |
Certifications and Standards
EN50194-1:2009 (related to CE Directive R305/2011)
EN50291
IEC62321-1:2013
EN55014-1:2017
