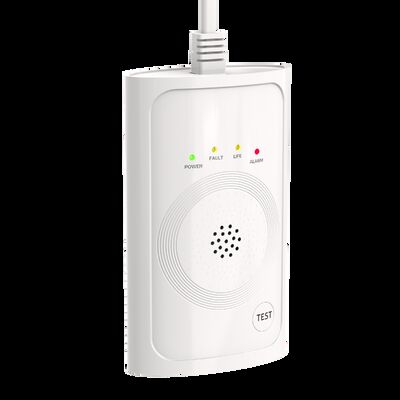

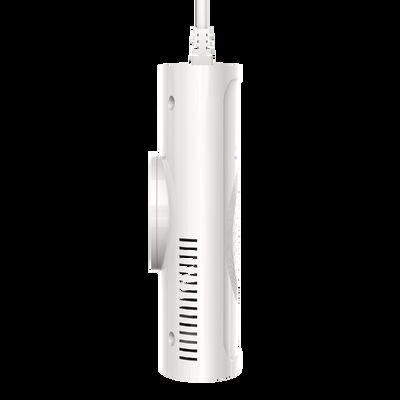

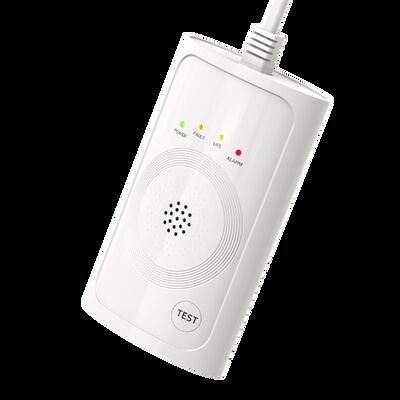

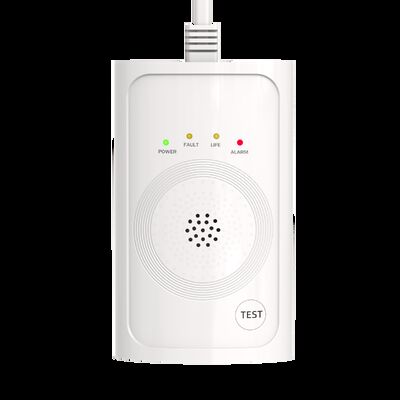

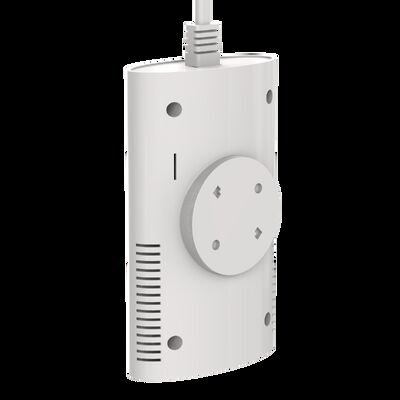

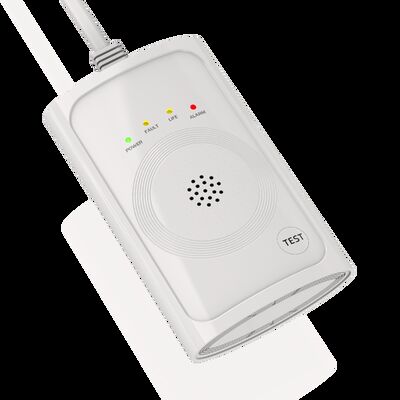

5 Year Smart WIFI Gas Detector Wall Mounted Tuya Gas Leak Detector With Real Time Monitoring
| Place of Origin | China |
|---|---|
| Brand Name | symank |
| Certification | CE/ROHS/EN50194/SGS |
| Model Number | JKD-838W |
| Minimum Order Quantity | 1000PCS |
| Price | Negotiable |
| Packaging Details | Color Box |
| Delivery Time | 15 Days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 50K/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Smart WIFI Gas Detector | Safety Certification | CE, ROHS |
|---|---|---|---|
| App Compatibility | IOS And Android | Power Supply | AC 110-240V |
| Gas Types Detected | Methane, Propane, LPG, Natural Gas | Additional Features | Real-time Monitoring, Historical Data Logging, Remote Alarm Reset |
| Operating Humidity | 5% To 95% RH (non-condensing) | Dimensions | 120mm X 75mm X 40mm |
| Operating Temperature | -10°C To 50°C | Connectivity | WIFI |
| Weight | 200 Grams | Alarm Type | Buzzer And Mobile App Notification |
| Installation Type | Wall-mounted | Detection Method | Semiconduct Sensor |
| Response Time | ≤10 Seconds | ||
| Highlight | 5 Year Smart WIFI Gas Detector,Wall Mounted Tuya Gas Leak Detector,5 Year Tuya Gas Leak Detector |
||
Product Description
5 Years Sensor Lifetime Smart WIFI Gas Detector with TUYA APP Integration and Real-time Monitoring
5 Years Smart WIFI Gas Leak Detector JKD-838W
This advanced 5-year smart WiFi gas leakage alarm utilizes high-quality catalytic sensors combined with sophisticated electronic technology to deliver stable performance and extended operational lifespan.
| Model Number | JKD-838W |
| Communication Protocol | WiFi-2.4GHz |
| Supply Voltage | AC 100-240V, 50Hz |
| Power Consumption | Max 5W |
| Standard Compliance | EN50194-1:2009 |
| Gas Detection | CH4 (Methane) |
| Alarm Concentration | ＞8.0%LEL (4000ppm) |
| Operating Temperature | -10℃ to 55℃ |
| Relative Humidity | 95% (No condensing) |
| Atmospheric Pressure | 86kPa to 106kPa, Indoor use type |
| Sampling Method | Natural diffusion |
| Alarm Method | Sound and Lighting Alarm |
| Alarm Volume | ≥85dB at 1m |
| Sensors | Catalytic sensor |
| Maximum Sensor Lifetime | 5 years |
| Weight | Approximately 200g |
| Dimensions | L120 × W75 × H40mm |
Product Features & Safety Benefits
Designed for wall mounting and other installation methods, this gas detector offers simple installation and easy operation. When combustible gas is present and reaches the preset alarm concentration threshold, the detector immediately triggers audible and visual alarm signals, enabling rapid response to prevent fire, explosion, and other hazardous situations.
Technical Specifications
| Working Voltage | AC 100-240V, 50Hz |
| Standby Current | <200μA |
| Alarm Current | <150mA |
| Warming Time | 3 minutes |
| Pressure Range | 86kPa to 106kPa |
| Inspection Gases | Natural gas, liquefied petroleum gas, methane, propane, carbon monoxide |
| Detection Thresholds | Gas Alarm: over 6%LEL, Continuous alarm: over 25%LEL CO Alarm: over 200×10⁻⁶ |
| User Environment | Temperature: -10°C to 55°C Relative Humidity: <95% without crystallization |
| Alarm Type | Sound and light alarming |
| Alarming Volume | >80dB (at three meters directly in front) |
| Sensor Technology | Semiconductor sensor & electrochemical sensor |
| Weight | Approximately 200g |
| Dimensions | 120 × 75 × 40mm |
| Shell Protection Grade | IP30 |
Certifications & Compliance
Certified Standards: EN50194-1:2009, related to CE Directive(s) R305/2011
SGS Certification
IEC62321-1:2013
EN55014-1:2017
SGS Certification
IEC62321-1:2013
EN55014-1:2017
